รายละเอียดสินค้า:
|
| พิมพ์: | ปศุสัตว์โครงสร้างเหล็ก | แอปพลิเคชัน: | โคนม / วัวเนื้อวัว / วัวฟีดล็อต / สต็อก / แกะพันธุ์ |
|---|---|---|---|
| เกรดเหล็ก: | Q235B, Q355B หรือเทียบเท่า ASTM | การรักษาพื้นผิว: | ภาพวาดหรือชุบสังกะสีแบบจุ่มร้อน |
| วิธีการเชื่อมต่อ: | ชุดประกอบที่มีความแข็งแรงสูง-ไม่มีการเชื่อมในสถานที่การติดตั้งที่รวดเร็วและปลอดภัย | ||
| เน้น: | Livestock Feeding System Cattle Shed,Galvanized Steel Frame Cattle Shed,Solar Panel Cattle Shed |
||
Description

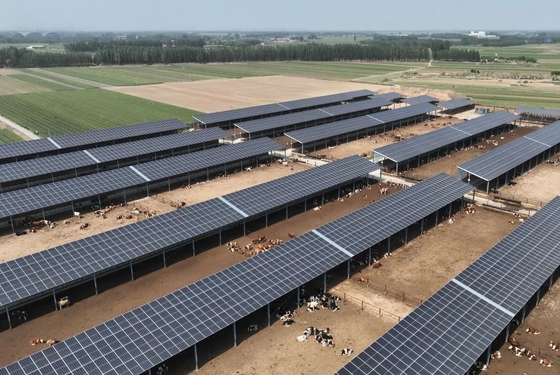

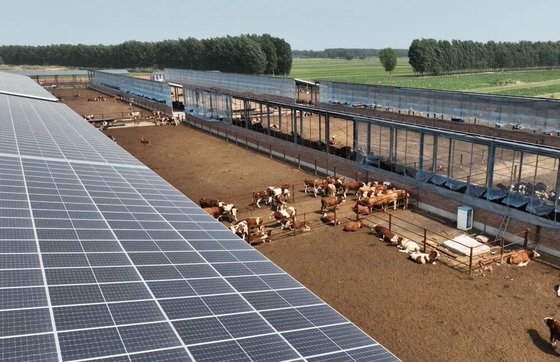

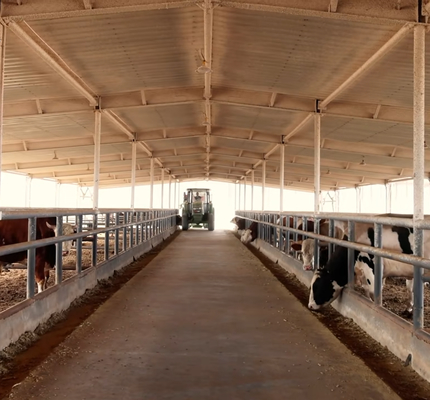

Optimize herd comfort and farm efficiency with our open-sided cattle shed — a smart, low-cost solution designed for dairy cows, beef cattle, and feedlot operations in tropical, subtropical, and arid climates. This ventilated livestock shelter provides essential shade, weather protection, and airflow while minimizing construction and maintenance costs.
Built with a hot-dip galvanized steel frame (Q235B / Q355B / equivalent), the structure resists rust, corrosion, and animal impact — ensuring a service life of 20+ years even in high-humidity or dusty environments. The open-side design promotes natural cross-ventilation, reducing heat stress and improving air quality without mechanical systems.
All components are factory pre-cut, pre-drilled, and numbered for bolted on-site assembly — no welding required. Installation is typically 50% faster than traditional barns, reducing labor costs and enabling rapid deployment for seasonal or emergency use.
| Item name | Specification | Material Parameter | Technical Treatment |
| Column | H shape,Box,steel pipe,Hot-rolled sheet | Q235B,Q355B | Paint or Hot-dip galvanized |
| Beam | H shape,steel Truss,Hot-rolled sheet | Q235B,Q355B | Paint or Hot-dip galvanized |
| Bracing | Tie rod,Casing pipe,Angle steel | Q235B,Q355B | |
| Purling | C / Z shape, purling Thickness:1.8mm~3.0mm | Q235B,Q355B | Hot-dip galvanized |
| Wall & roof panel | EPS / PU / PIR / Glass wool / Rock wool Sandwich panel or Single plate. | Steel T=0.426~0.8mm,insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet,T=1.0~1.5mm | Paint or Hot-dip galvanized |
| Window | Alloy-Glass,Aluminium alloy-shutter, Louvers | T=1.0~2.0mm | Alloy |
| Skylighting panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel,stainless steel,PC | Paint or Hot-dip galvanized,304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot-dip galvanized,304 |
| Downpipe | PVC / Color steel pipe T=0.5mm | Φ110,160,200 | Paint |
| Bolt | Ordinary, high strength | 10.9S,4.8s | Hot-dip galvanized |
|
Anchor bolt |
Steel rod M24,M27 M30 |
Q235B |
Packing&Shipping
Why Choose Us
|
Professional design |
We design the drawing as your requirement or calculate the steel quantity based on your drawing. |
|
Skilled fabrication |
We make the independent production schedule to each project. |
|
One-stop service |
We have completed lots such kinds of projects, we could provide the integrated proposal for your project. |
|
Professional QC |
We guarantee the production and service as your request. Third-party inspection is also acceptable. |
|
After sales service |
If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us, we will try to provide the service as well as we can. |
How to quote:
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | Wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | Snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | Anti-earthquake | _____level |
| 6 | Brickwall needed or not | If yes, 1.2m high or 1.5m high |
|
7 |
Thermal insulation |
If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested;if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | Livestock | quantity / target weight |
